Link Lift Axles

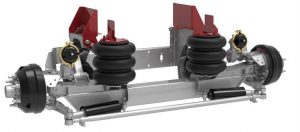

Link Self-Steer 8K Lift Axle
The DuraLift II 8K is a self-steer, liftable suspension, with patented interchangeable and adjustable frame brackets. Fabricated from Grade 100 Steel.
Type Self-Steer
Weight 776 LBS
Capacity 8K
Travel 13″
Lift 7-9″
Ride Height 11″- 19.5″
Envelope 22″
Frame Width 33.5″ – 35″
Ordering Guide Installation Instructions Owner’s Manual
DuraLift II 8K Self-Steer Liftable Suspension….this innovative “Light-Weight Champ,” with wheel-end hardware, weighs in at an incredible…. 776 lbs.
The DuraLift II 8K suspension incorporates:
-
Patented design, interchangeable and adjustable frame brackets
-
One unit fits all standard truck chassis – Four ride height kits available
-
Trailer mounts available for 18-22.5″ ride heights
-
Compact mounting envelope… 22.5 inches
-
Optional integrated air system… and more!
DuraLift II 8K is the perfect solution for Bigger Payloads and Regulatory Compliance!
Link Self-Steer 10K Lift Axle
The DuraLift II 10K is a self-steer, liftable suspension, with patented interchangeable and adjustable frame brackets. Fabricated from Grade 100 Steel.
Type Self-Steer
Weight 796 LBS
Capacity 10K
Travel 13″
Lift 7-9″
Ride Height 11″- 19.5″
Envelope 22″
Frame Width 33.5″ – 35″
Ordering Guide Installation Instructions Owner’s Manual
DuraLift II 10K Self-Steer Liftable Suspension….this innovative “Light-Weight Champ,” with wheel-end hardware, weighs in at an incredible…. 796 lbs.
The DuraLift II 10K suspension incorporates:
-
Patented design, interchangeable and adjustable frame brackets
-
One unit fits all standard truck chassis – Four ride height kits available
-
Trailer mounts available for 18-22.5″ ride heights
-
Compact mounting envelope… 22 inches
-
Optional integrated air system… and more!
DuraLift II 10K is the perfect solution for Bigger Payloads and Regulatory Compliance!

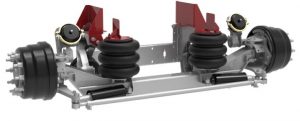

The Link 13.5K Auxiliary Suspension is a lightweight, 13,500 pound capacity, self-steering lift axle that incorporates several unique features. The patented, interchangeable ride height brackets allow the installer to manage inventory dollars and still have a lift axle available for almost any truck. The improved lift spring geometry of the Link 13.5K Auxiliary Suspension assures longer life of the lift springs and less downtime for the owner. The compact mounting envelope (22”) combined with the integrated air control system (optional) saves valuable frame rail space. The separate ride height brackets and pre-plumbed integrated air control kit can save up to 3-5 hours of installation time.
Type Self-Steer
Weight 916 LBS
Capacity 13.5K
Travel 13″
Lift 7-9.5″
Ride Height 8″- 16.5″
Envelope 22″
Frame Width 33.5″ – 35″
Ordering Guide Installation Instructions Owner’s Manual
The DuraLift II is a 13.5 K capacity liftable suspension constructed of high strength steel and cast aluminum components. It’s oneof the lightest, self-steering, liftable suspensions with standard wheel ends on the market today. The DuraLift II is over 10% lighter, utilizing strong lightweight components in non-critical load-bearing areas, including cast aluminum actuator components; a high-strength aluminum cross-member; and a tubular steel axle with cast steel ends. The DuraLift II provides the opportunity to increase payload, trip after trip.
The new lift actuators utilize a more compact and lightweight rolling sleeve design in conjunction with zero wind-up bushings. These actuators operate in-line (parallel), increasing reliability and durability of the lift system, as well as providing increased driveline clearance. The DuraLift II has a patented feature not found on any other competitor’s liftable suspension… interchangeable and adjustable frame brackets.
The DuraLift II also offers an optional factory installed integrated air system. This pre-plumbed unit significantly reduces installation time.
Type Self-Steer
Weight 1,197 LBS
Capacity 20K
Travel 13″
Lift 9.5″
Ride Height 8″- 14.5″
Envelope 23.1″
Frame Width 33.5″ – 35″
Ordering Guide Installation Instructions Owner’s Manual
-
Standard Air Control Kit (Included with Lift Axle) Installation Manual
-
Sealed Air Control Kit (Option with Lift Axle) Installation Manual

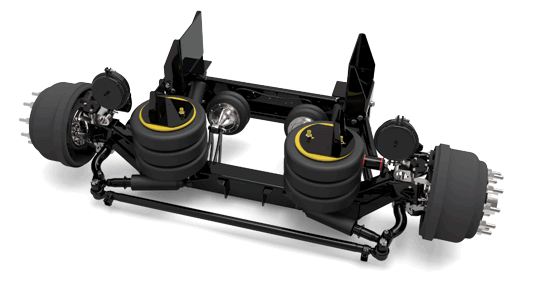

The DuraLift II 20 K is a self-steer, liftable suspension, with patented interchangeable and adjustable frame brackets.
DuraLift II 20K Self-Steer Liftable Suspension….an innovative “Light-Weight Champ”The DuraLiftII 20K suspension incorporates:
– Our patented design, interchangeable and adjustable frame brackets
– Optional integrated air system… and more!
– One unit fits all standard truck chassis – Four ride height kits available
- Patented interchangeable and adjustable frame brackets
- One unit fits any standard truck chassis
- Three ride height kits available (8″-10.5″, 10″-12.5″,12″-14.5″)
- Compact mounting envelope – 23.1″
- Optional integrated air system
- Inventory and installer friendly
- Constructed of T1 steel

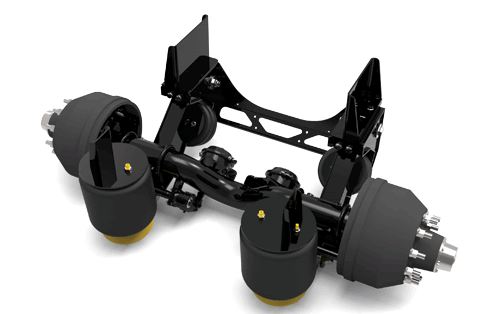

The DuraMax is a non-steer, liftable suspension, with patented interchangeable and adjustable frame brackets.
8A000451 – Straight Axle for Tag Position
8A000452 – 6″ Drop Center Axle for Pusher Position (Tandem Axles)
8A000454 – 8″ Drop Center Axle for Pusher Position (Single Axles)
8A000455 – Straight Axle for 77.5″ Track
8A000456 – 6″ Drop Center Axle Straight Axle for 77.5″ Track
Trailer Installation Instructions
Truck Installation Instructions
-
Most Durable on the Market
-
The DuraMax is a 20 K capacity non-steer liftable suspension. It boasts a patented feature not found on any competitor’s liftaxle, interchangeable and adjustable frame brackets.
-
Three ride height bracket kits mount to a single base model, allowing the DuraMax to fit any ride height and any frame width.
Trailer mounts are available for 15″ – 19.5″ ride heights. -
The DuraMax is equipped with an improved lift spring geometry and a trim mounting envelope of 24.3″.
-
An optional integrated air kit is available. This pre-plumbed unit significantly reduces installation time.

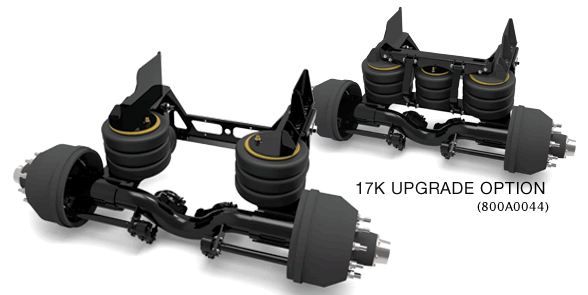

Our Model 5500 is a high lifting non-steer liftable suspension giving you up to 12″ of lift.
8A000051– Drop Center Axle for 20″ Wheels (pusher)
8A000054– Straight Axle 77.5″ track
8A000052 – Straight Axle for 20″Wheels (tag)
- Type Non-Steer
- Axle 5″ Round /
- Weight 1,145 LBS, 1196 LBS
- Capacity 13.2K , 17K
- Travel 15″
- Lift 8″ -12″
- Ride Height 11″- 15″
- Envelope 31.5″
- Frame Width33.5″ – 35″
Ordering Guide
Installation Instructions
The Model 5500 is a 13.2 K capacity hi-lift, non-steer liftable suspension. It features a direct arm to axle connection, increasing stability and reducing maintenance. The Model 5500 has a patent pending feature not found on any competitor’s liftable suspension… interchangeable frame brackets and adjustable hanger brackets. This allows one baseunit to fit most standard truck chassis configurations. It also reduces the new truck delivery time normally needed to order a specific axle for your truck.By incorporating interchangeable frame brackets and adjustable hanger brackets, the Model 5500 can be completely unitized at the factory, insuring accurate alignment to the suspension. In addition, it reduces the cost of your next new truck with the ability to move the Model 5500 from one truck to another with minimal added cost. The Model 5500 is available with 15″ and 20″ wheels for maximum lift and clearance. It covers frame widths from 33.5″ to 35″ with ride heights from 11″ – 15″.
