Ridewell
Lift Axles or Liftable Suspensions |
|
|
|
Vehicles shown above are
equipped with Ridewell auxiliary axle air suspensions. |
Liftable Suspensions
Ridewell offers
a complete line of Liftable Suspensions to meet your
every need. Choose from self-steer and non-steer
designs. |
|
For the
following applications:
(click part
number for pricing and to order online)
|
|
NON-STEERABLE |
STEERABLE |
|
6060047 20K 6" Drop Center
Pusher, 10 hole hub-piloted |
2320015 11.5"-15"
Ride Ht. 10 Hole hub-piloted |
|
6060048 20K 8" Drop Center
Pusher, 10 hole hub-piloted |
|
|
6060067 Straight Axle Tag, 10 hole
hub-piloted |
|
|
2150010
13.2K Pusher Axle |
|
|
2150015 13.2K Tag Axle |
|
|
Ridewell RCA-215 Flex-Mount TM
New, more efficient design increases
strength and reduces weight!
 |
· 22,500 lbs. capacity |
|
· 50-72 lbs. lighter than our 225
model |
|
depending on ride height |
|
· 10
1/4”
total travel, with as much as |
|
7” of lift |
|
· Flexible system easily adjusts to
various |
|
frame widths and ride heights |
|
· New durable & lightweight FiberTechTM |
|
bushing |
|
· Patented, contoured axle seat for
secure |
|
axle connection without U-bolts |
|
· Axle alignment adjustment of
3/8”
at |
|
each hanger |
|
· Designed to accept axle drop of up
to 8” |
|
· Wide beam spacing reduces axle
stresses |
|
· Shock kit option available |
|
· Axle integration optional |
|

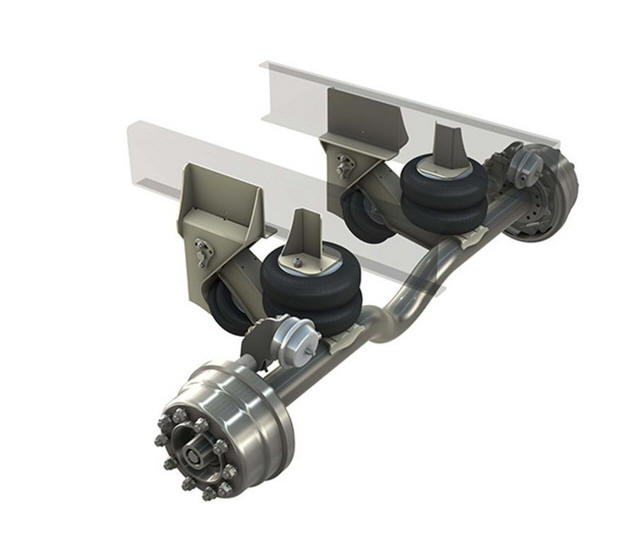

Ridewell's Lightweight
Auxiliary Axle Suspension System
Ridewell Suspensions has developed a new
self-steering, liftable auxiliary axle suspension
system. The model 232 has a capacity rating of
13,200 lbs. and is both air-ride and air-lift.
The system includes a lightweight, fully
integrated axle and weighs in at less than 800
lbs. The suspension's simple structure reduces
complexity, increases strength and optimizes
weight.
Key features of Ridewell's 232 include:
· A compact mounting envelope
as low as 21.9" from the center of the spindle to
the leading edge of the hanger;
· A one-size-fits-all system that easily adjusts
to various frame widths and ride heights;
· 10" of up travel that can easily be optimized
for various ride heights;
· Urethane bushings;
· High tensile steel; and
· 28 degrees of wheel cut.
Ridewell engineers started with a
blank computer screen and the objective of
developing the best possible combination of
weight reduction and durability in an all steel
self-steering lift axle suspension. Their success
is well demonstrated by the final weight of only
773 pounds, complete with light weight hubs and
drums.
Advanced computer design tools resulted in a
structure that reduces complexity and increases
strength while optimizing weight. Additionally,
the unique Flex-Trac system is ideal for the
aftermarket installer with built-in flexibility
for a range of ride heights and frame widths.
|
|
Use our Contact Form to find out if a Link Lift
Axle (made by Link Chassis Suspensions) is
available for your truck
CONTACT FORM
|
|
